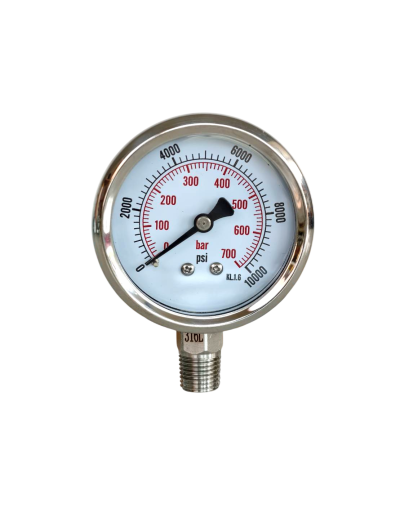

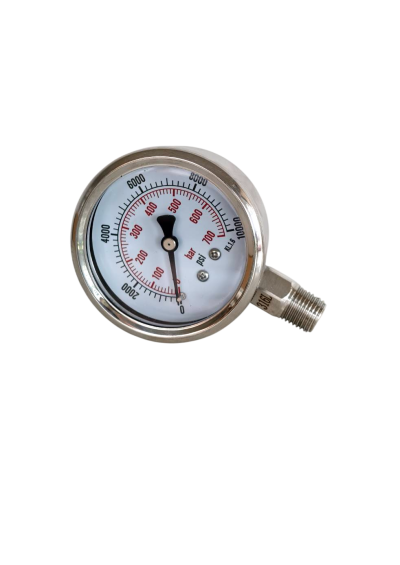

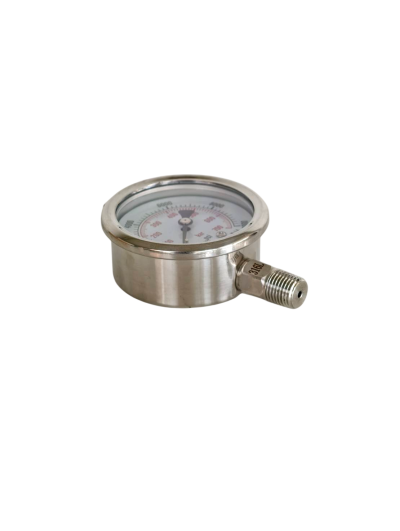

Pressure Gauge 10,000 PSI (700 Bar) 1/4" NPT Bottom Mount SS316 – 63 mm

Product Description
The Pressure Gauge 10,000 PSI (700 Bar) is designed for high-pressure measurement in hydraulic systems, industrial equipment, and oil & gas applications. Featuring a 63 mm dial, 1/4" NPT bottom connection, and SS316 stainless steel construction, this pressure gauge is suitable for demanding industrial environments requiring reliable pressure monitoring.

With a pressure range of 0–10,000 PSI (0–700 Bar), it is suitable for high-pressure hydraulic applications, pressure testing equipment, and oilfield systems, subject to the manufacturer's rated specifications.

Technical Specifications
Pressure Range: 0–10,000 PSI (0–700 Bar)
Connection Size: 1/4" NPT
Mounting Type: Bottom Mount (BM)
Dial Size: 63 mm (2.5")
Material: SS316 stainless steel (confirm case and wetted-part materials with manufacturer)
Application: High-pressure hydraulic systems, pressure testing equipment, and oil & gas equipment

Key Features
High-pressure measurement up to 10,000 PSI (700 Bar)
Compact 63 mm dial for convenient installation
1/4" NPT process connection
Stainless steel construction for corrosion resistance
Suitable for industrial and oilfield pressure monitoring applications

Applications
High-pressure hydraulic systems
Hydraulic power units and pumps
Hose and fitting pressure testing equipment
Oilfield and drilling equipment
Industrial high-pressure fluid systems
Important: Verify the gauge's maximum working pressure, accuracy class, pressure connection rating, and compatibility with the pressure medium before use. For pulsating pressure or severe vibration, consider a manufacturer-approved liquid-filled or dampened gauge.
